Sale!

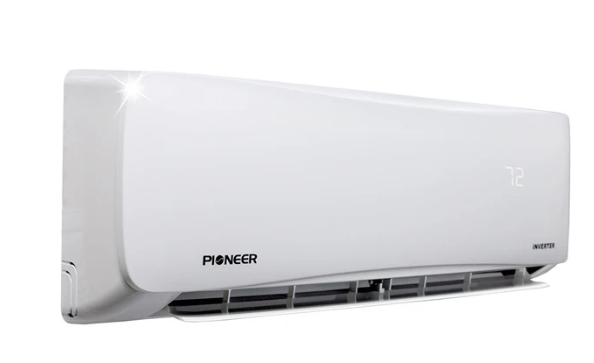

30,000 BTU Ductless DC Inverter Mini Split Air Conditioner Heat Pump, 230 VAC, 18 SEER

$2,789.72

30,000 BTU Ductless DC Inverter Mini Split Air Conditioner Heat Pump, 230 VAC, 18 SEER

Subtotal:

Add-ons total:

Total:

Description

30,000 BTU Ductless DC Inverter Mini Split Air Conditioner Heat Pump, 230 VAC, 18 SEER

R410A PRE-CHARGED OUTDOOR UNIT, ACCOMMODATING REFRIGERANT LINE LENGTHS UP TO 25 FT. PER CIRCUIT

NOTE: THE INSTALLATION KIT IS NECESSARY FOR THE SYSTEM TO FUNCTION. DO NOT SELECT THE “WITHOUT INSTALLATION KIT” OPTION FROM THE DROPDOWN UNLESS YOU ARE PROVIDING ONE YOURSELF. THE INSTALLATION KIT IS: COPPER REFRIGERATION LINES, COMMUNICATION WIRE BETWEEN INDOOR AND OUTDOOR UNIT, 10 FT DRAIN HOSE, WALL CAP, SLEEVE, AND PUTTY.

PERFORMANCE

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 30,000 BTU/h
  • Cooling Capacity Range: 12,300~42,900 BTU/h
  • Cooling SEER: 18.0 BTU/w
  • Heating Rated Capacity: 30,000 BTU/h
  • Heating Capacity Range: 12,300~42,900 BTU/h
  • Heating HSPF: 9.6 BTU/w
  • Refrigerant Type: R410a
  • Suitable Area: 900~1,100 Sq.F
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $210.00
    • Heating: $631.00

INDOOR UNIT

  • Air Flow (Hi/Med/Lo): 795 / 618 / 471 CFM
  • Sound Level (Hi/Lo): 52.5 / 44.5 dB(A)
  • Net Dimensions (WDH): 49.5 x 11.2 x 14.3 Inches
  • Carton Dimensions (WDH): 52.7 x 17.7 x 15.0 Inches
  • Net / Gross Weight: 43 / 56 Lbs

OUTDOOR UNIT

  • Sound Level: 62.0 dB(A)
  • Net Dimensions (WDH): 37.3 x 16.5 x 31.8 Inches
  • Carton Dimensions (WDH): 42.8 x 19.6 x 34.0 Inches
  • Net / Gross Weight: 138 / 148 Lbs

Owners Manual

Data Sheet

Owners Manual

Owners Manual



All mini split systems and accessories include a one year warranty. Must have certification or license to install electrical components and products. All information, and proven certifications must be emailed to support@allaroundindustrysupply.com Warranty does not cover freight, damages to outside parts, components, or ramifications of defective motor. Warranty does not cover labor.
