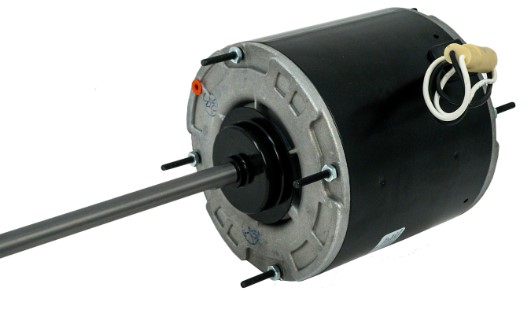

US Motors 1874H 5 5/8″ Dia. High Temp. Multi-HP Condenser Fan Motor

Mars 20459 5 5/8" Dia. High Temp. Multi-HP Condenser Fan Motor, 208-230 Volts, 825 RPMTopTech TT-C33-MSP3 5 5/8" Dia. Multi-Horsepower Condenser Fan Motor, 208-230 Volts, 825 RPM

$162.51

Motor Voltage 208-230
Amps 1.8-2.0
Brand Packard
Bearings Ball
Capacitor Required 7.5MFD 370V
Country of Origin CHINA
Diameter (In.) 5 5/8
Enclosure TEAO
H.P. 1/4-1/5-1/6-1/8
Hertz 60
Insulation Class B
Length Less Shaft (In.) 4-7/8
Motor Rotation Reversible
Motor Type PSC
Mounting Option All Angle
NEMA Frame 48
Overload Protection Automatic
Phase Single
RPM 825
Service Factor 1.0
Shaft Dimensions (In.) Dia x Lgth 1/2 x 6-1/2
Speeds 1
UPC 840899112879
Voltage 208 – 230

Subtotal:

Add-ons total:

+

Total:

$0.00

WOULD YOU LIKE TO MODIFY / WIRE AND PRE-TEST THIS ITEM?

:

$0.00
?Shipped without changing voltage. If the motor has more than one voltage capability, the highest voltage is factory configuration (ex: 115/208 motor = 208-volt setup and shipped). *WE WILL CONTACT YOU PROMPTLY IF THE VOLTAGE SELECTED IS NOT APPLIABLE WITH THE PRODUCT PURCHASED*
?Also known as 100, 110, 115, 120-volt single phase
?Also known as 208, 220, 230, 240-volt single phase
?Also known as 208, 220, 230, 240-volt three-phase
?Also known as 460, and 480-volt three-phase
Clear selection
$0.00

3. SELECT your PLUG type (socket-connection, etc.) below:

$0.00

THIS PRODUCT INCLUDES A ONE-YEAR MANUFACTURER’S WARRANTY.

  • (added) MODIFICATION Cost: $0.00
  • (original) PRODUCT Cost: $162.51
  • Subtotal: $0.00
Click here for a formal quote
Category:

Description

Motor Voltage 208-230
Amps 1.8-2.0
Brand Packard
Bearings Ball
Capacitor Required 7.5MFD 370V
Country of Origin CHINA
Diameter (In.) 5 5/8
Enclosure TEAO
H.P. 1/4-1/5-1/6-1/8
Hertz 60
Insulation Class B
Length Less Shaft (In.) 4-7/8
Motor Rotation Reversible
Motor Type PSC
Mounting Option All Angle
NEMA Frame 48
Overload Protection Automatic
Phase Single
RPM 825
Service Factor 1.0
Shaft Dimensions (In.) Dia x Lgth 1/2 x 6-1/2
Speeds 1
UPC 840899112879
Voltage 208 – 230



GE 3459
GE 4369
Rheem 51-20760-11
Rheem 51-21276-01
Rheem 51-23054-13
Rheem 51-23055-12
Diversitech WG840204
Mars 03459
Mars 03469
Mars 10459
Mars 10469
Smart Electric 247981
TopTech TT-C33-MSP3
Nidec 1875
Nidec 5431
US Motors 1874
US Motors 1875
US Motors 5431




All motors include a one year warranty. Must have certification or license to install electrical components and products. All information, and proven certifications must be emailed to support@allaroundindustrysupply.com Warranty does not cover freight, damages to outside parts, components, or ramifications of defective motor. Warranty does not cover labor.
