Sale!

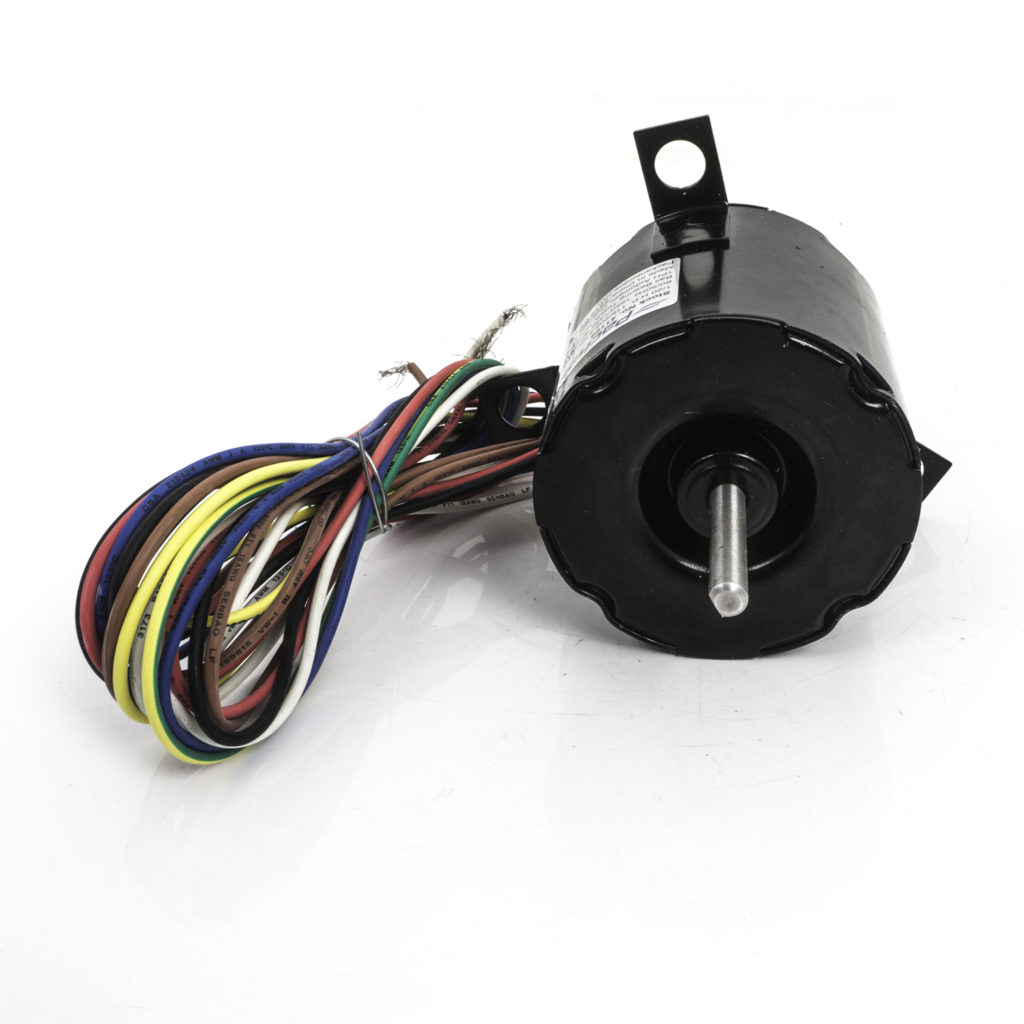

Franklin 8254111030 3.3″ Dia. Motor, Krack Repl., 1/20 HP, 115/208-230 Volt, 1350/1550 RPM

Franklin 8354110940 3.3" Dia. Motor, Krack Repl., 1/20 HP, 115/208-230 Volt, 1350/1550 RPMKrack 11529 3.3" Dia. Motor, Krack Repl., 1/20 HP, 115/208-230 Volt, 1350/1550 RPM

$153.51

Item Specifications

H.P. 1/20
Speeds 1
Amps 1.60/0.80
Rotation CWSE
RPM 1350/1550
Bearings Ball
Diameter (In.) 3.3
Enclosure Totally Enclosed
Mounting Lug
Shaft Length (In.) 1-5/8
Motor Type Shaded Pole
Frame 3.3
Overload Protection Automatic
Phase 1
Shaft Diameter (In.) 5/16
Shafts 1
Hertz 60/50
Shaft Dimension (In.) 5/16 x 1-5/8
Length Less Shaft (In.) 3-1/16
Voltage 115/208 – 230

Subtotal:

Add-ons total:

+

Total:

$0.00

WOULD YOU LIKE TO MODIFY / WIRE AND PRE-TEST THIS ITEM?

:

$0.00
?Shipped without changing voltage. If the motor has more than one voltage capability, the highest voltage is factory configuration (ex: 115/208 motor = 208-volt setup and shipped). *WE WILL CONTACT YOU PROMPTLY IF THE VOLTAGE SELECTED IS NOT APPLIABLE WITH THE PRODUCT PURCHASED*
?Also known as 100, 110, 115, 120-volt single phase
?Also known as 208, 220, 230, 240-volt single phase
?Also known as 208, 220, 230, 240-volt three-phase
?Also known as 460, and 480-volt three-phase
Clear selection
$0.00

3. SELECT your PLUG type (socket-connection, etc.) below:

$0.00

THIS PRODUCT INCLUDES A ONE-YEAR MANUFACTURER’S WARRANTY.

  • (added) MODIFICATION Cost: $0.00
  • (original) PRODUCT Cost: $153.51
  • Subtotal: $0.00
Category:

Description

Item Specifications

H.P. 1/20
Speeds 1
Amps 1.60/0.80
Rotation CWSE
RPM 1350/1550
Bearings Ball
Diameter (In.) 3.3
Enclosure Totally Enclosed
Mounting Lug
Shaft Length (In.) 1-5/8
Motor Type Shaded Pole
Frame 3.3
Overload Protection Automatic
Phase 1
Shaft Diameter (In.) 5/16
Shafts 1
Hertz 60/50
Shaft Dimension (In.) 5/16 x 1-5/8
Length Less Shaft (In.) 3-1/16
Voltage 115/208 – 230




All motors include a one year warranty. Must have certification or license to install electrical components and products. All information, and proven certifications must be emailed to support@allaroundindustrysupply.com Warranty does not cover freight, damages to outside parts, components, or ramifications of defective motor. Warranty does not cover labor.
